Portable Diesel Generator for Mobile Power Applications



Compared to stationary generators, portable diesel generators are more compact, have a reinforced frame, and are equipped with mobility systems such as wheels or trailer-mounted installation.



They are widely used in construction sites, emergency response, outdoor projects, rental fleets, and other temporary power supply applications where flexibility and rapid installation are extremely important.

  • Rapid deployment for temporary power supply
  • Easy relocation between multiple work locations
  • Reduced installation time and cost
  • Suitable for rental and project-based use
  • Flexible power solution for changing environments



Mobility-Based Classification

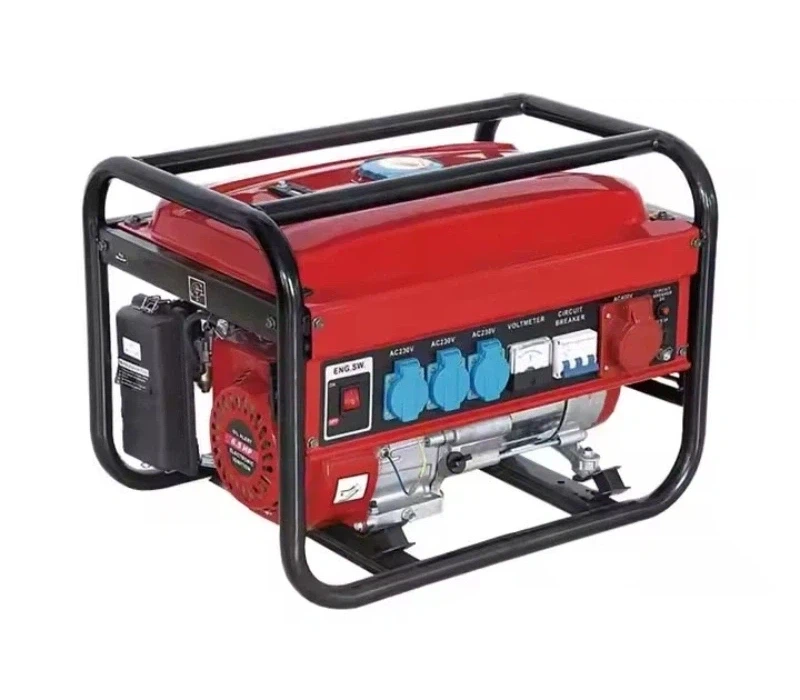

FRAME-MOUNTED PORTABLE TYPE



Compact structure for short-distance movement and small-scale applications.
Engineering Configuration:
Steel frame base with lifting points
Optional small wheels for manual movement
Integrated control panel and fuel tank
Air-cooled or compact cooling system
Typical Applications:
Small construction tasks
Maintenance and repair work
Temporary backup for small equipment

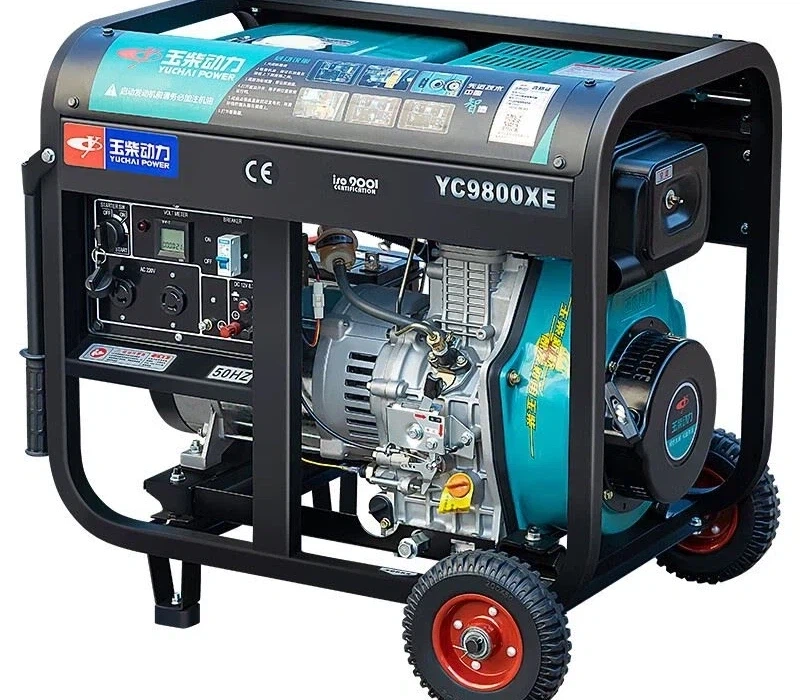

WHEEL-TYPE MOBILE GENERATOR



Designed for easy relocation within job sites.
Engineering Configuration:
Heavy-duty wheel system with locking mechanism
Reinforced chassis for uneven ground
Integrated handle or push-bar structure
Compact enclosure for protection
Typical Applications:
Construction sites
Event power supply
Agricultural and field operations

TRAILER-MOUNTED DIESEL GENERATOR



Designed for long-distance transport and multi-location deployment.
Engineering Configuration:
Trailer chassis with tow bar
Road-legal lighting and braking system (optional)
Integrated fuel tank for extended operation
Weather-protected enclosure (IP-rated canopy)
Typical Applications:
Rental power fleets
Emergency power response
Infrastructure projects
Remote site deployment



Portable vs Stationary Generator Comparison



Feature

Portable Diesel Generator

Stationary Generator

Mobility

High (wheels/trailer)

Fixed installation

Deployment

Fast setup

Requires installation

Application

Temporary/mobile use

Permanent power system

Structure

Compact, reinforced frame

Heavy-duty fixed base

Transport

Easy relocation

Not designed for movement



Customization Options



Item

Options

Mobility Type

Frame-mounted / Wheel-type / Trailer-mounted

Chassis Structure

Standard frame / Reinforced mobile chassis

Wheel System

Solid wheels / Pneumatic wheels / Lockable wheels

Trailer System

Single-axle / Double-axle trailer

Enclosure Type

Open frame / Compact canopy / Silent enclosure

Protection Level

IP23 / IP44 / IP54

Starting System

Manual / Electric start

Control System

Standard control panel / Digital control panel

Fuel Tank

Integrated tank / Extended fuel tank

Voltage Output

220V / 380V / 400V (standard configurations)



Technical Parameters



Item

Specification

Model

SDG-5 / SDG-8 / SDG-10 / SDG-15

Rated Power

5 kVA / 8 kVA / 10 kVA / 15 kVA

Rated Voltage

230V / 400V

Frequency

50 Hz / 60 Hz

Engine Type

1-cylinder / 2-cylinder diesel engine

Fuel Tank Capacity

12 L – 40 L (depending on model)

Continuous Running Time

8–12 hours at full load

Noise Level

≤ 65 dB at 7 meters

Starting System

Electric start / Manual start

Dimensions (L×W×H)

700×500×600 mm – 1200×700×900 mm

Weight

70–180 kg

Protection

Overload, low oil pressure, high coolant temp



Packaging & Shipping



Lead Time

15–25 working days

Packaging

Generators are packed with shockproof, plywood, and waterproof materials to prevent damage during transportation

Payment Method

T/T, Trade Assurance, Paypal, Western Union, Credit Card, L/C etc.

Shipping

Sea freight, air freight, and express delivery options are available

productcate-1-1



Our Certificates



productcate-1-1



FAQ



Q: How do I choose the right type of portable diesel generator?

A: The selection mainly depends on how often and how far the generator needs to be moved. Frame-mounted units are suitable for short-distance manual repositioning, wheel-type units are designed for frequent movement within a job site, and trailer-mounted units are used when the generator needs to be transported between different locations.

Q: Can portable diesel generators be transported on public roads?

A: Trailer-mounted generators can be designed for road transport with a proper chassis, towing structure, and optional lighting systems. Actual road compliance depends on local transport regulations and configuration.

Q: Are portable generators stable when operating on uneven ground?

A: Yes. Portable diesel generators are built with reinforced frames and, in some cases, suspension-supported trailer systems to maintain stability on construction sites or rough terrain. Proper placement and leveling are still recommended for safe operation.

Q: How quickly can a portable generator be deployed on-site?

A: Portable units are designed for rapid deployment. With integrated fuel tanks, control panels, and output connections, they can typically be installed and put into operation within a short time after positioning.

Q: Can portable generators run continuously for long periods?

A: They can support extended operation depending on fuel tank capacity and cooling configuration, but they are primarily designed for temporary or mobile power use rather than permanent continuous-duty applications.

Q: What should be considered when selecting a portable generator for a project?

A: Key considerations include movement frequency, transport method, site conditions, available space, and required power load. Matching mobility structure with actual usage conditions is more critical than simply selecting power capacity.

Q: Can portable diesel generators be used in rental or fleet applications?

A: Yes. Portable generators are widely used in rental businesses due to their flexibility, easy transport, and adaptability to different job sites and temporary power needs.

Q: What affects the durability of a portable generator during frequent movement?

A: Durability depends on chassis strength, wheel or trailer quality, and overall structural design. Reinforced frames and proper transport handling are essential to withstand vibration and repeated relocation.

We're well-known as one of the leading portable diesel generator manufacturers and suppliers in China. We warmly welcome you to buy advanced portable diesel generator at competitive price from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.
